Mining Drilling Machine Air Compressors
Brief introduction of air compressor
1 Application:
Widely used in electricity, rail, ship repair, mining, roads, spray, oil and gas fields, drilling wells, municipal construction, cable laying, and other related fields.
2 Status Monitor:
We design the instrument In accordance with primary and secondary principle,the interface is more concise, It allows users to operate more simply and handy.
3 European wing design
Wing design, beautiful appearance, easy maintenance and repairs
4 low transport costs
Small size, light weight, low noise; shape lightweight, easy to transport, small practical footprint, It can access freely in the narrow conditions and reduces transportation costs.
5 large capacity fuel tank
With a large-capacity fuel tank, it can work continuously for more than eight hours.
6.Low noise
It's installed noise absorption sponge in all directions to make noise lower.
Air compressor parameters
| Model | DACY-13/8 |
| Air flow capacity | 13m3/min=459 cfm |
| Rated Exhaust pressure | 8bar=114psig |
| Working pressure range | 5-8 bar |
| Lubricating oil volume | 54L |
| Interface size and qty | R1.1/2'' ball valve 1pcs, R1'' ball valve 1 pcs |
| Tyre specification | 6.5-16*2 |
| Tyre pressure | 500-600 kPa |
| Wheel distance | 1560mm |
| Highest operating altitude | 3000m |
| Dimension (L*W*H) | 3220*1850*1850mm |
| Air end type | Hanzhong AA-1030R |
| Weight | 2450 kg |
| Noise | 80-85 dB(A) |
| Diesel engine model | Cummins 6BT5.9 |
| Engine oil volume | 12-18L |
| Cooling liquid volume | 25-28L |
| Rated power | 110kw=150hp |
| Rated rotation | 2400 rpm |
| Fuel tank volume | 120-160 L |
| 80% load oil consumption | 17-18 L/h |
Product Tags:
|
|

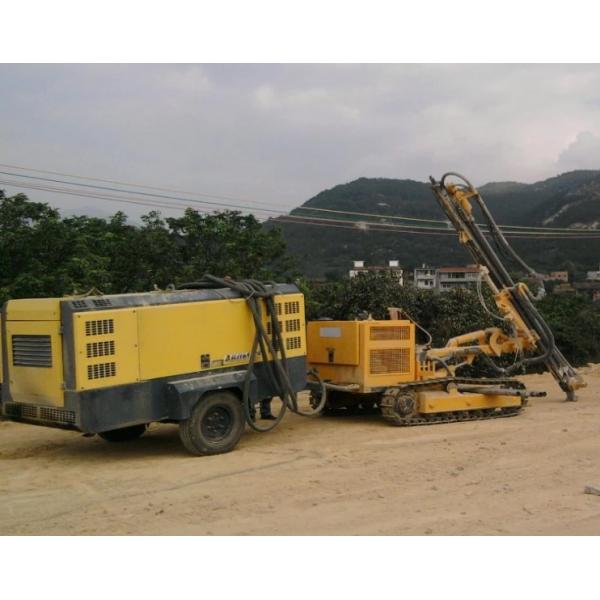

Mine 459 Cfm 8 Bar Drilling Rig Compressor Images
|
